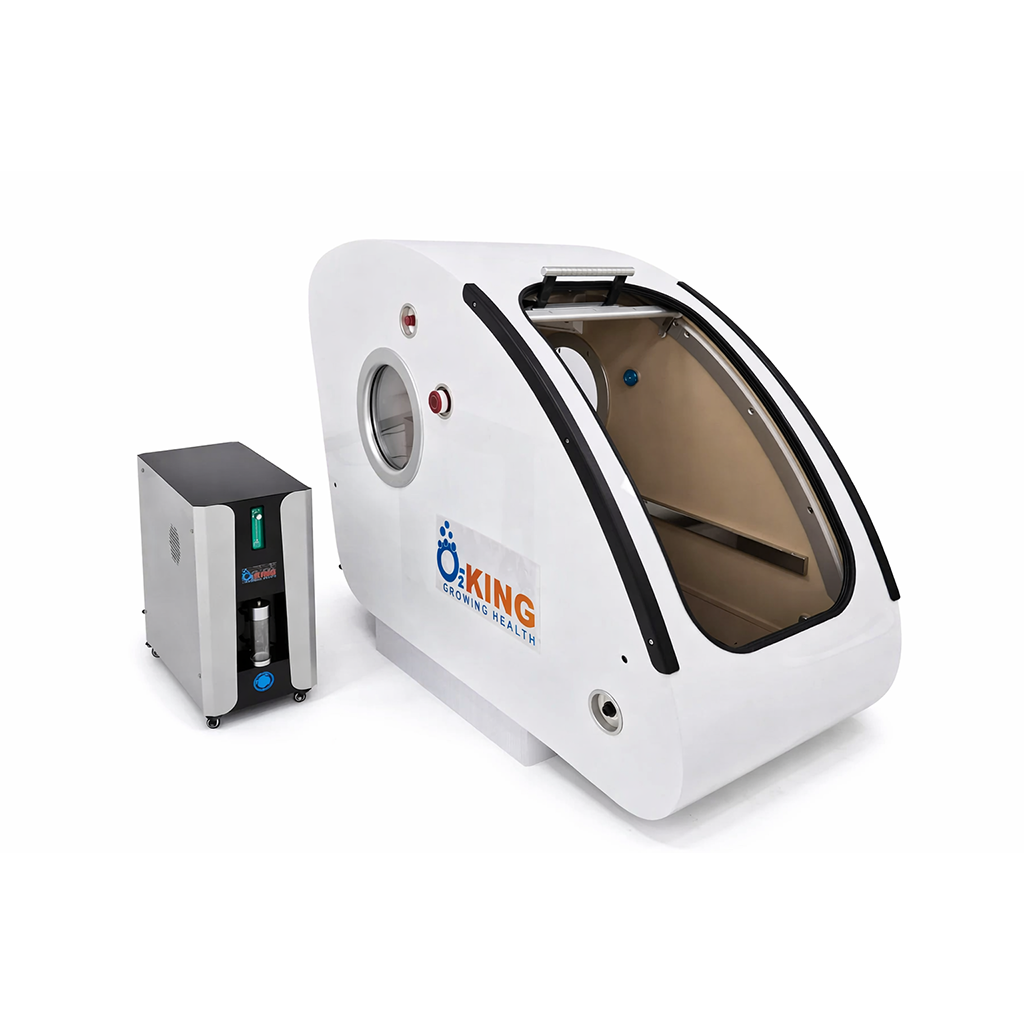

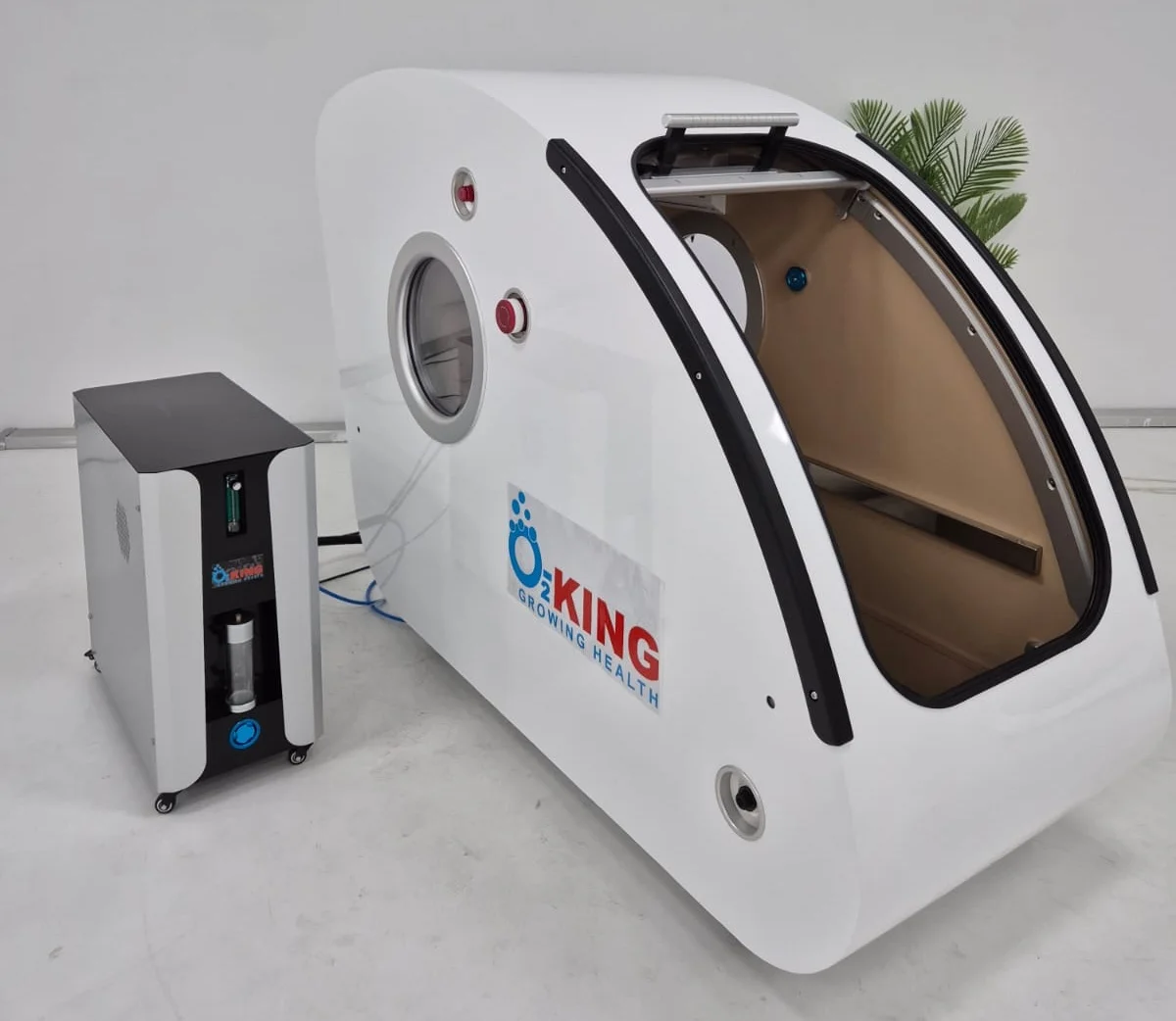

Model: O-1PSHC
Specification:
- Cabin Size: L2200*W880*H1550mm
- Material: Stainless steel+PC engineering plastics
- Hatch door:PC Endurance Board
- Working pressure: 2.0ATA
- Window number:3
- Weight: 700kg
Model: 10L All-in-one machine
Specification:
- 1*Oil Free Air Compressor
- 1*10L Oxygen Concentrator
- 2*Cooling Machine
- Anion Air Purifier
- Air Sterilizer/Anti-virus System
- Air Filter
- Humidity Water Cotainer
- Oxygen Flow:10L/min
- Air flow: 110 L/min
- Power:1300W

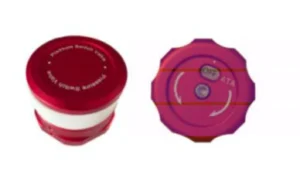

Pressure regulating valve
Specification:
pressure switch valve allows to adjust the pressure at 1.4-1.6-1.8-2.0ATA, one simple press, different pressure levels adjustable.

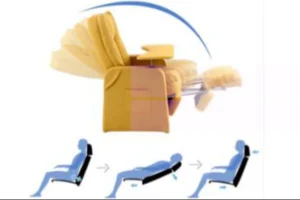

Adjustable seat
Specification:
Sitting or lying down can be controlled by the body

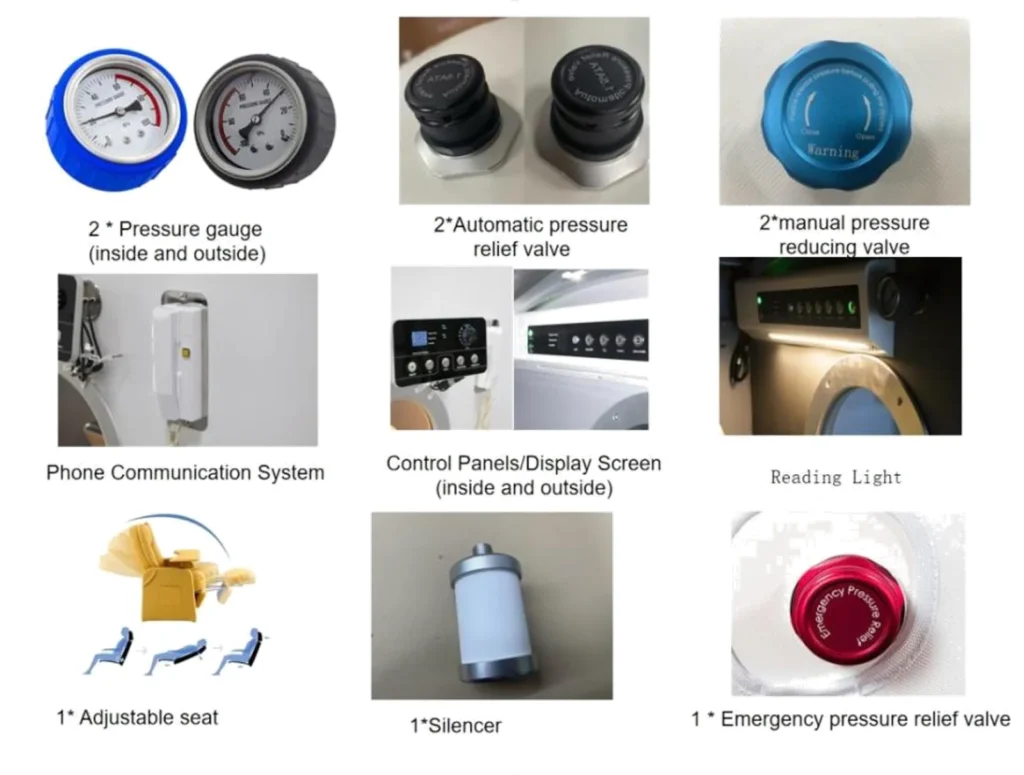

Including & Standard accessories:
Including
- 2* manual pressure reducing valve (inside and outside)
- 2* Automatic pressure relief valve
- 2* muffler cap
- 2 * Pressure gauge (inside and outside)
- 1 * Emergency pressure relief valve 1*Phone Communication System 1*Reading Light
- 2*Display Screen (inside and outside) 2*Control Panels (inside and outside) 1*Adjustable seat
- 1 extra filters for free
- 1 complimentary oxygen masks
- Spare fuse
4.Packing Data ( 2 wooden Boxes)
| Item | Cabin | All-in-one machine | Total |
| Dimension | 220*105*169cm | 85*41*90cm | / |
| G.W | 1150kg | 110kg | 1250KG |
| N. W | 700KG | 90kg | 790KG |
| Volume | 4.0m³ | 0.35m³ | 4.35m³ |
